16 Ton 20 Ton 32 Ton European-style Wire Rope Electric Hoist Double Girder

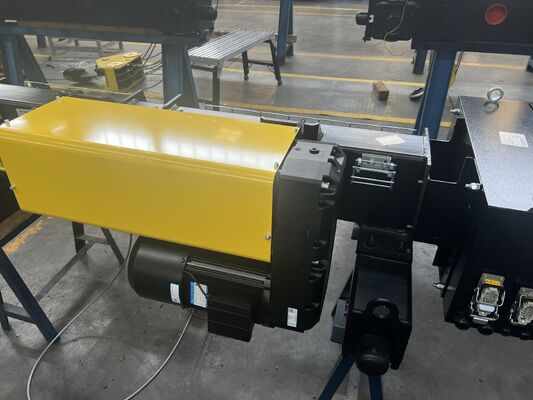

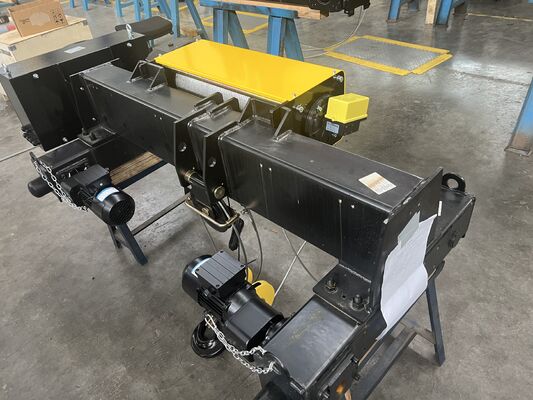

Imagem Grande : 16 Ton 20 Ton 32 Ton European-style Wire Rope Electric Hoist Double Girder

Detalhes do produto:

Lugar de origem:	China
Marca:	JCYC
Certificação:	ISO9001,CE
Número do modelo:	SHSL

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	USD8000-USD15000
Detalhes da embalagem:	Caixa de madeira compensada
Tempo de entrega:	4 semanas
Termos de pagamento:	L/C, T/T, Western Union
Habilidade da fonte:	10 conjuntos por mês

Contato

Descrição de produto detalhada

Nome do produto:	Talha elétrica de cabo de aço de estilo europeu de 16 toneladas, 20 toneladas e 32 toneladas	Capacidade de elevação:	16-32T
Altura de elevação:	9-45m	Velocidade de elevação:	Controle do inventor
Tipo:	Viga dupla	Velocidade de corrida:	5-20m/min
ISO:	M5

Construction Machinery 16 Ton 20 Ton 32 Ton European-style Wire Rope Electric Hoist Double Girder

Product Introduction

Structural Design:
The European-style Wire Rope Electric Hoist small car electric hoist adopts a uniquely designed spatial rod support structure, which not only enhances the stability of the equipment but also optimizes the overall force distribution.
The spatial rod support structure enhances the stability of the crane during operation, reducing sway.
2. The classic "C"-shaped structural layout of the lifting device ensures smooth and efficient lifting operations.
3. The coaxial three-in-one drive unit design enables synchronous driving of dual-side wheel assemblies, enhancing operational coordination.

Lifting system:
The lifting drive mechanism operates the large-diameter drum assembly, working in conjunction with high-strength nylon pulley and hook systems to ensure the safety and reliability of the lifting process.
1. The large-diameter drum assembly design increases the number of rope wraps, enhancing lifting capacity.
2. High-strength nylon pulley set, resistant to wear and corrosion, extends service life.
3. The hook assembly has undergone special treatment, offering higher load capacity and enhanced safety.

Drive mode
The coaxial three-in-one drive unit is a standout feature of theEuropean-style Wire Rope Electric Hoist, as it simultaneously drives both side wheel sets, achieving an efficient operation mode.
The three-in-one drive unit integrates the motor, reducer, and brake, simplifying the structure and improving transmission efficiency.
2. The synchronous driving of dual wheel sets ensures stable operation of the crane on both straight and curved tracks.
3. The drive mechanism is designed with rationality and ease of maintenance, reducing operational costs.

Material Selection:
The European-style Wire Rope Electric Hoist is meticulously crafted in material selection, ensuring the product's durability and reliability.
1. The support members and key components are made of high-strength steel, enhancing the overall load-bearing capacity.
2. The nylon pulley set and hook set are made of high-quality materials, offering excellent wear and corrosion resistance.
3. The rope wedge device is made of special materials, ensuring the tightness and safety of the rope.

Key Specifications

ITEM	VALUE
Applicable Industries	Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Place of Origin	China
Power Source	Electric
Sling Type	Wire Rope/chain/winch/european
Warranty	1 Year
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, Bearing, Gear, Gearbox

Advantage

Compact structure, light weight, low wheel pressure and high overall cost performance
Save operating costs and be low-carbon and environmentally friendly
Selected high-quality accessories, safe and reliable, durable
Precise positioning, efficient operation, and enhanced production efficiency
Safe and reliable, operation monitoring(optional), maintenance-free
Modular design with multiple options to meet the various working conditions of customers

Technical Specifications

Capacity(t)	Working class	Lifting height (m)	Lifting speed (m/min)	running velocity (m/min)	Rope reeving
10	M5	6	5/0.8	2-20	4/1
		9
		12
		15
		18
16	M5	9	4/0.67	2-20	4/1
		9
		12
		15
		18
		18
32	M5	8	2.7/0.45	2-20	6/1
		10
		10
		12
		16
50	M5	6	0.53/3.2	2/20	12/2
		9
		12
		12

Main Components

Company Introduction

More Products

Company Certificate

Frequently Asked Questions

Q1. What types of cranes do you offer?

A1:as a manufacturer with over 15 years' experience, rui cheng provide a range of cranes,in cluding gantry cranes, overhead cranes, electric hoist, ib cranes, and customized lifting solutions tailoredto specific industry needs, such as for steel, precast concrete, and container handling

Q2. How do l know which crane is suitable for my project?

A2: Our team of experts is here to help! By understanding your lifting capacity requirements,operational environment, and usage freguency, we can recommend the ideal crane solution for your project.Contact us for a free consultation.

Q3. How to choose the right crane?

A3: The following factors need to be considered when choosing a crane: Load capacity, Lifting height Working environment, Frequency of operation.

Q4. What maintenance services do you offer?

A4: We offer comprehensive maintenance plans, including preventive maintenance,inspection, repairand spare parts replacement, to keep your crane running efficiently and safely. Our service teamis available forscheduled and emergency support.

Q5: Can you accept OEM?

A5: Yes, of course. Any logo is acceptable.Material, Color, Size, Packing, Brand, Delivery etc,

Q6:What are your delivery and installation timelines?

A6: Delivery and installation timelines vary based on the type and customization of the crane Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions mayreauire additional time, We aim to provide accurate timelines upfront to ensure smooth proiec tplanning.

Q7: Do you offer installation services?

A7: Yes, we provide comprehensive training programs for crane operators, including safety trainingmaintenance guidelines, and operational best practices to ensure your team is fully prepared tooperate the crane safely and efficiently.
